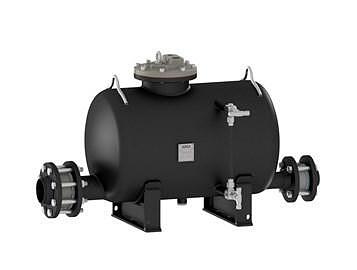

The ADCAMat PPA312 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.
MATERIAL
- Carbon steel
CONNECTIONS
- Flanged EN 1092-1 PN 16
- Flanged ASME B16.5 Class 150
- Female threaded ISO 7 Rp
MAX. MOTIVE PRESSURE
- 10 bar
MAX. OPERATING TEMPERATURE
- 185 ºC
FLOW RATE CAPACITY
- Up to 7540 kg/h
