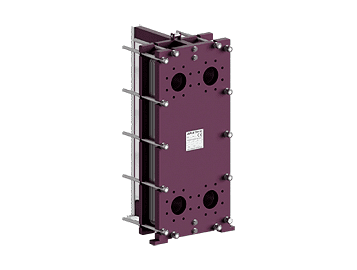

The ADCATherm PAT plate heat exchangers (gasketed and bolted), consist of a variable number of pressed heat transfer plates clamped together between a fixed and a movable pressure plate, all assembled in a metal frame.
MATERIAL
- Carbon steel, stainless steel or special alloys
CONNECTIONS
- Female threaded ISO 228 or NPT
- Flanged EN 1092-1 PN 10 or ASME B16.5 Class 150
MAX. OPERATING PRESSURE
- 10 bar
MAX. OPERATING TEMPERATURE
- Up to 180 ºC
