LOOP JOINT
Всички посочени цени са с включено ДДС!

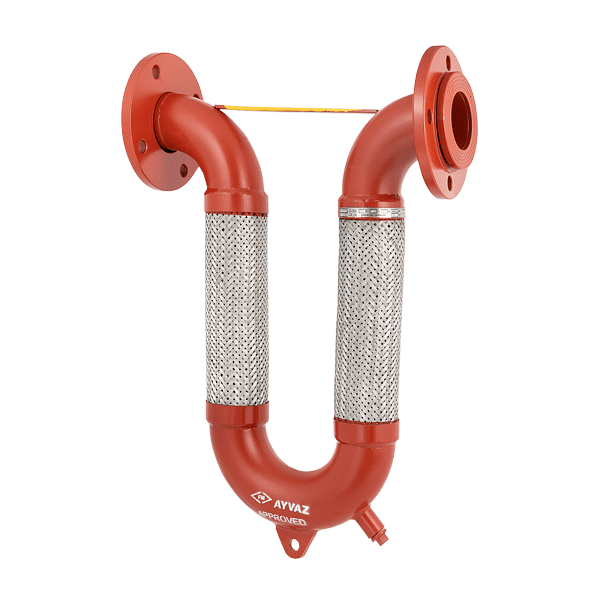

The loop joint is designed to move in any direction making it a simple, all-in-one joint for a variety of applications. There’s no limit to the seismic applications that loop joints can handle. It can even be designed with lined hose for high velocity, double-braid for high pressures, and all stainless steel construction for media compatibility.
Piping used in applications and locations subject to seismic conditions have their own set of unexpected random movements and greater costs to overcome. The random motion common to earthquakes requires that seismic expansion joints be capable of movement in any direction. Of the 6 possible directions. Ayvaz Loop joint’s orientation can be changed relative to the piping, further minimizing the likelihood of compressive movement.
Bellow Material
Stainless Steel AISI 304 (opt.321,316L,316TI,309)
Braiding Material
Stainless Steel AISI 304
Connection Types
Floating Flanged, Welded Ended, Grooved & Threaded
Flange Material
PN 16, St.37.2 as standard, the material can be customised on request
Operating Temperature
-10°C/+550°C
Operating Pressure
175 psi & 250 psi
TYPES
U-FLEX
Rotating Flanges
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Welded End
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Grooved End
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Threaded EN-10226-1(R)
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
V-FLEX
Rotating Flanges
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Welded End
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Grooved End
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
Threaded EN-10226-1(R)
40 mm movement
100 mm movement
200 mm movement
400 mm movement
600 mm movement
[Download]
Product Brochure - Download Here
