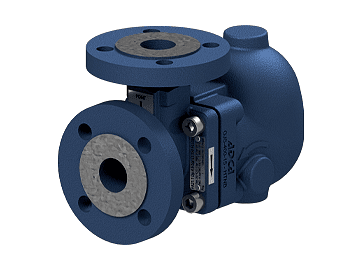

The FA21.1 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.
MATERIAL
- SG iron
SIZES
- 1/2” to 1” – DN 15 to DN 25
CONNECTIONS
- Female threaded ISO 7 Rp or NPT
- Flanged EN 1092-1/-2 PN 16
- Flanged ASME B16.42/B16.5 Class 150
MAX. OPERATING PRESSURE
- 14 bar
MAX. OPERATING TEMPERATURE
- Up to 250 ºC
