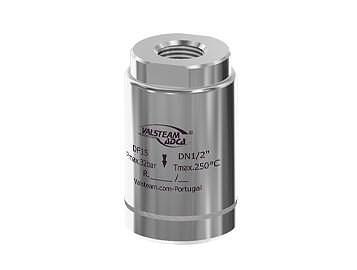

The ADCA DF series are compact noise diffusers designed to disperse the high-speed discharge from steam or air traps, dampening the noise levels and reducing erosion. These devices are typically installed downstream of intermittent steam traps, such as thermodynamic or inverted bucket, which are generally associated with high-speed blast discharges. Noise reductions greater than 80% can be expected when measured at 1 meter away from the source.
MATERIAL
- Stainless steel
SIZES
- 1/2'' to 1''
CONNECTIONS
- Threaded ISO 7 Rp
MAX. OPERATING PRESSURE
- 32 bar
MAX. OPERATING TEMPERATURE
- 250 ºC
